zAgileConnect Flow Action - Create Issue

Please note that zAgileConnect license is required for a user to invoke this Action. Additionally the user must have the “zAgileConnect Subscription User“ permission set and access to the “ZCProcessIssueCreate“ apex class.

You can create an Issue by using Salesforce Flow and adding the “Create Issue“ action to your flow. The action has the following fields:

Create Issue Action Fields

If more than one Component, Label, FixVersion or AffectsVersion is required to be passed to Jira when creating an Issue, use instead the zAgileConnect Apex API for creating Issues.

Default Create Issue Fields Mapping

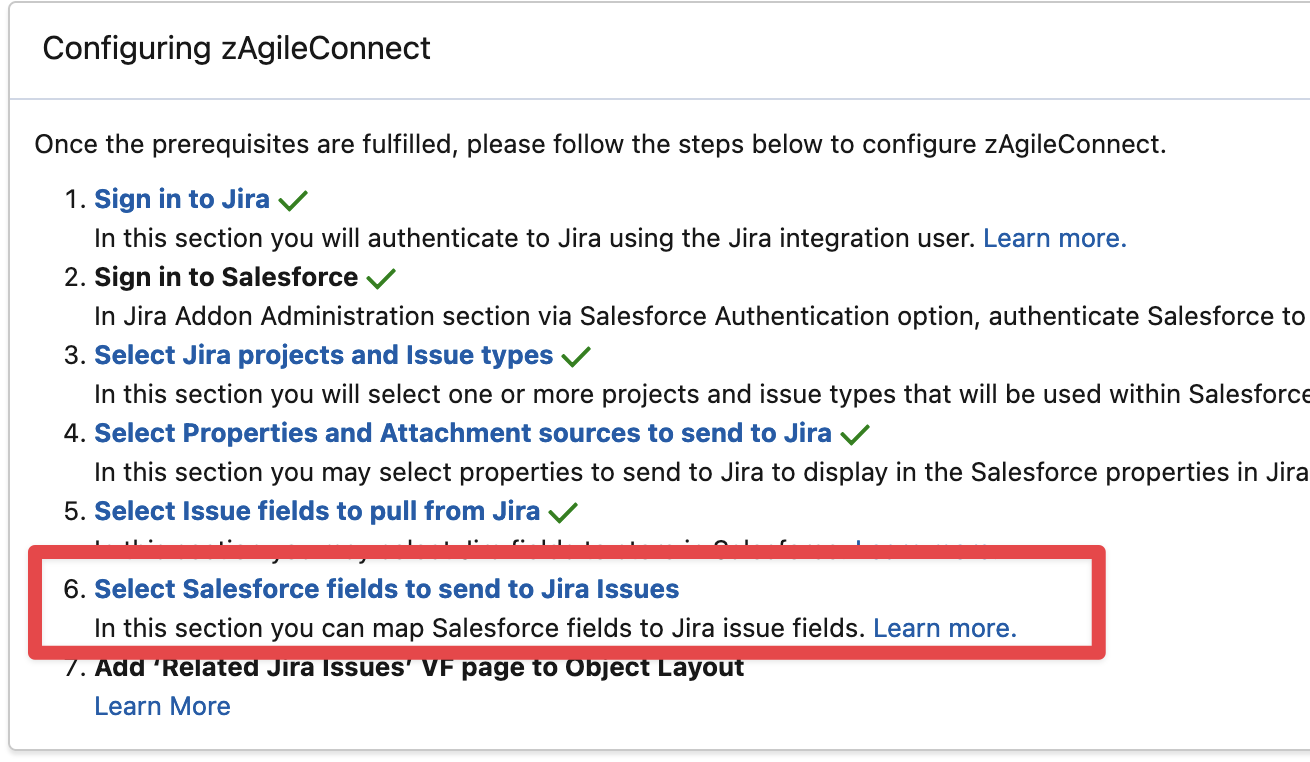

By default the Create Issue action uses the values mapped in the Step 6 - Select Salesforce fields to send to Jira Issues.

For example if summary and description are mapped in Step 6, then the Create Issue action will use those values for those fields when creating the Issue if no values are provided in the Flow Builder.

For Jira custom fields, the custom fields defined in Flow Builder in the customfieldsJSON override all the custom fields mapped in Step 6. So custom fields can be either mapped in the Step 6 or defined in the customfieldsJSON but not both, if both are defined only custom fields in customfieldsJSON will be sent to Jira.

Error Handling

This invocable action executes callouts to Jira API and so is executed in an asynchronous transaction. For this reason this action does not return any result. Errors during Issue creation are sent via email to the Salesforce user for whom the Flow is being executed and will also show in the “Related Jira Issues“ section for the Salesforce record provided (provided as entityId in the Flow Builder).

Setting Custom Fields Data

Jira Issue custom fields can be set using the customfieldsJSON field. This fields expects a String that represents a JSON Object, each attribute in the object must be the custom field Id (customfield_). For example:

{
 "customfield_11001" : <custom field value>,
 "customfield_11005" : <custom field value>,
 "customfield_11008" : <custom field value>
}

the expected custom field value depends on the type of the custom field, to find the custom field Ids use the following REST API provided by Atlassian:

• Create meta for Jira Cloud
  https://{jiraBaseUrl}/rest/api/3/issue/createmeta/{projectIdOrKey}/issuetypes/{issueTypeId}

• Create meta for Jira Server or Data Center
  https://{jiraBaseUrl}/api/2/issue/createmeta/{projectIdOrKey}/issuetypes/{issueTypeId}

Replace {jiraBaseURL}, {projectIdOrKey} and {issueTypeId}, to find the Issue Type Id see Finding the ID for Issue Types.

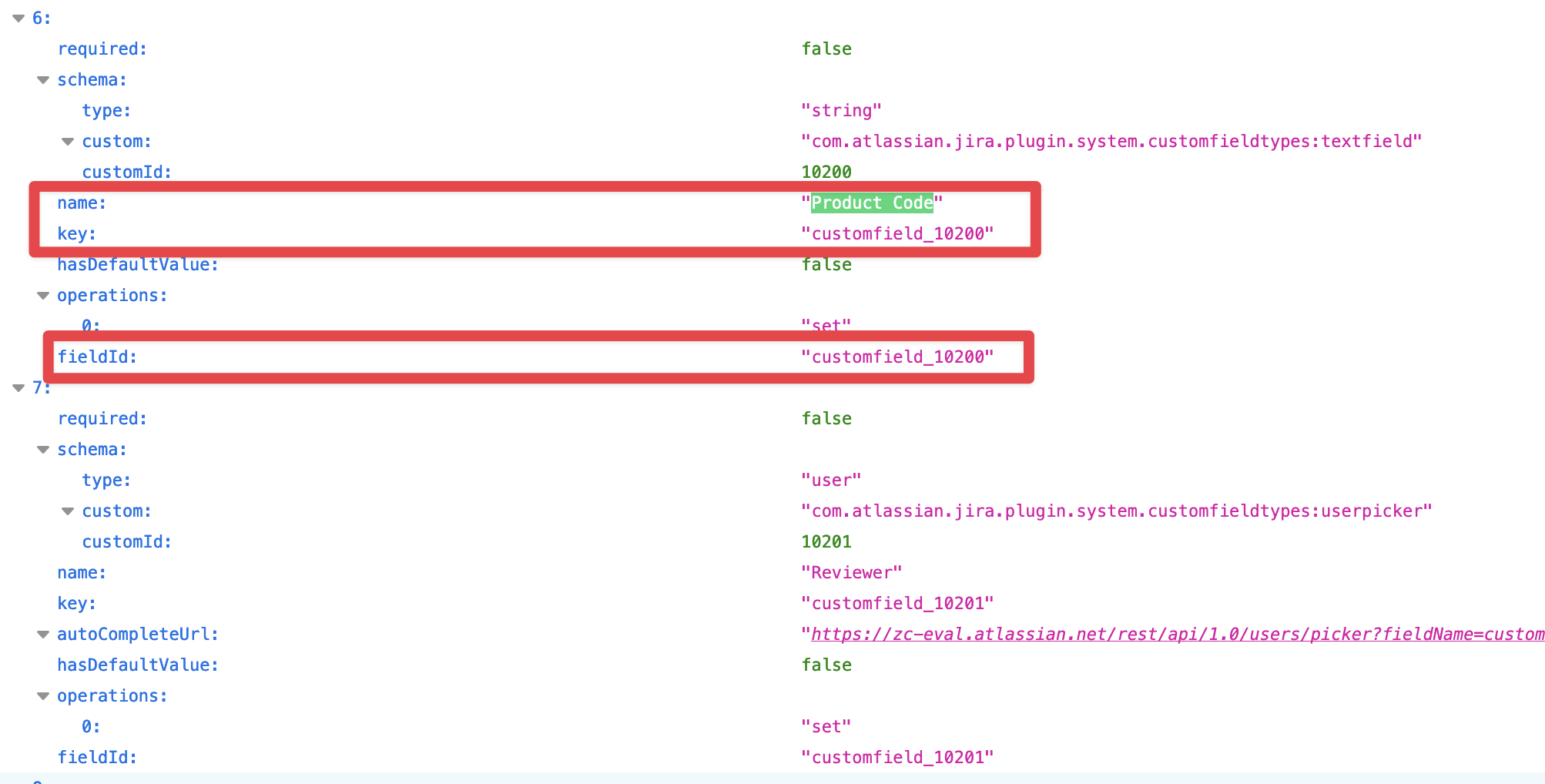

for example https://example.atlassian.net//rest/api/3/issue/createmeta/SFTEST/issuetypes/1 will produce:

Find the metadata for the custom field by name (Product Code in the example above) in the response.

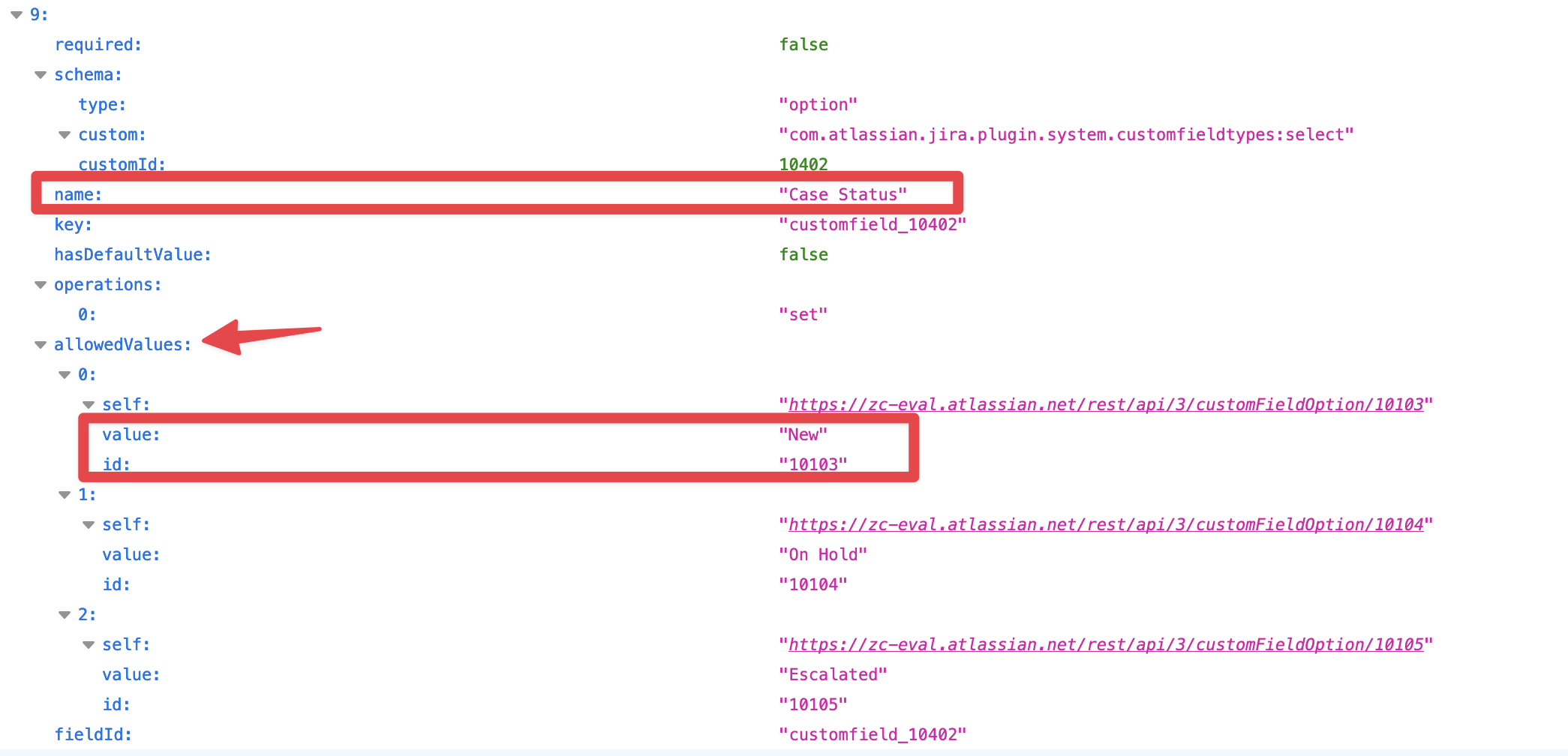

Some field types have allowed values in the metadata, for example for select lists, checkboxes, etc. You need to get the allowed value Id in order to pass it to Jira. In the example below there is a Select List (single choice) Jira custom field called “Case Status”, with 3 allowed values (New, On Hold, Escalated), to pass the “New“ value to Jira for Issue creation you need to grab and use the Id “10103“.

The examples below show how to set the values for different types of custom fields (you can find the field type in Jira Settings → Issues → Custom Fields ).

TextField - FreeTextField

Text Field (single line) or Text Field (multi-line)

"customfield_11050" : "Value that we're putting into a Free Text Field."

DatePickerField

"customfield_10002": "2011-10-03"

DateTimeField

"customfield_10003": "2011-10-19T10:29:29.908+1100"

This format is ISO 8601: YYYY-MM-DDThh:mm:ss.sTZD

NumberField

"customfield_10010": 76.68

URLField

"customfield_10016": "http://www.zagile.com"

SelectList

Select List (single choice)

"customfield_10013": { "id": "10103" }

RadioButtons

"customfield_10012": { "id": "10105" }

ProjectPicker

"customfield_10011": { "id": "10001" }

GroupPicker

Group Picker (single groups)

"customfield_10005": { "name": "jira-developers" }

SingleVersionPicker

Version Picker (single version)

"customfield_10014": { "id": "10000" }

MultiSelect - Checkboxes

Select List (multiple choices) or Checkboxes

"customfield_10008": [ {"id": "10040" }, {"id": "10050" }, {"id": "10060" }]

VersionPicker

Version Picker (multiple version)

"customfield_10018": [{ "id": "10110" }, { "id": "10120" }, { "id": "10130" }]

MultiGroupPicker

Group Picker (multiple groups)

"customfield_10007": [{ "name": "admins" }, { "name": "jira-developers" }, { "name": "jira-users" }]

CascadingSelectField

Select List (cascading)

"customfield_10001": {"id": "10210", "child": {"id":"10510"}}

UserPicker

For Jira Server and Data Center pass the username.

"customfield_10017": { "name":"jhuertas"}

For Jira Cloud pass the Account Id

"customfield_10017": { "id":"557058:e090d05a-0f5d-4a11-8cc1-0a0804686861"}

MultiUserPicker

For Jira Server or Datacenter pass usernames.

"customfield_10009": [{"name": "charlie" }, {"name": "bjones" }, {"name": "tdurden"}]

For Jira Cloud pass Account Ids

"customfield_10009": [{"id": "557058:e090d05a-0f5d-4a11-8cc1-0a0804686861" }, {"id": "557058:e090d05a-0f3d-2a44-1cc1-0a0804664329"}]

For example to pass 3 custom fields of types text, select list (single choice) and a number field:

{
 "customfield_11001" : "Value that we're putting into a Free Text Field.",
 "customfield_11005" : { "id": "10103" },
 "customfield_11008" : 76.68
}

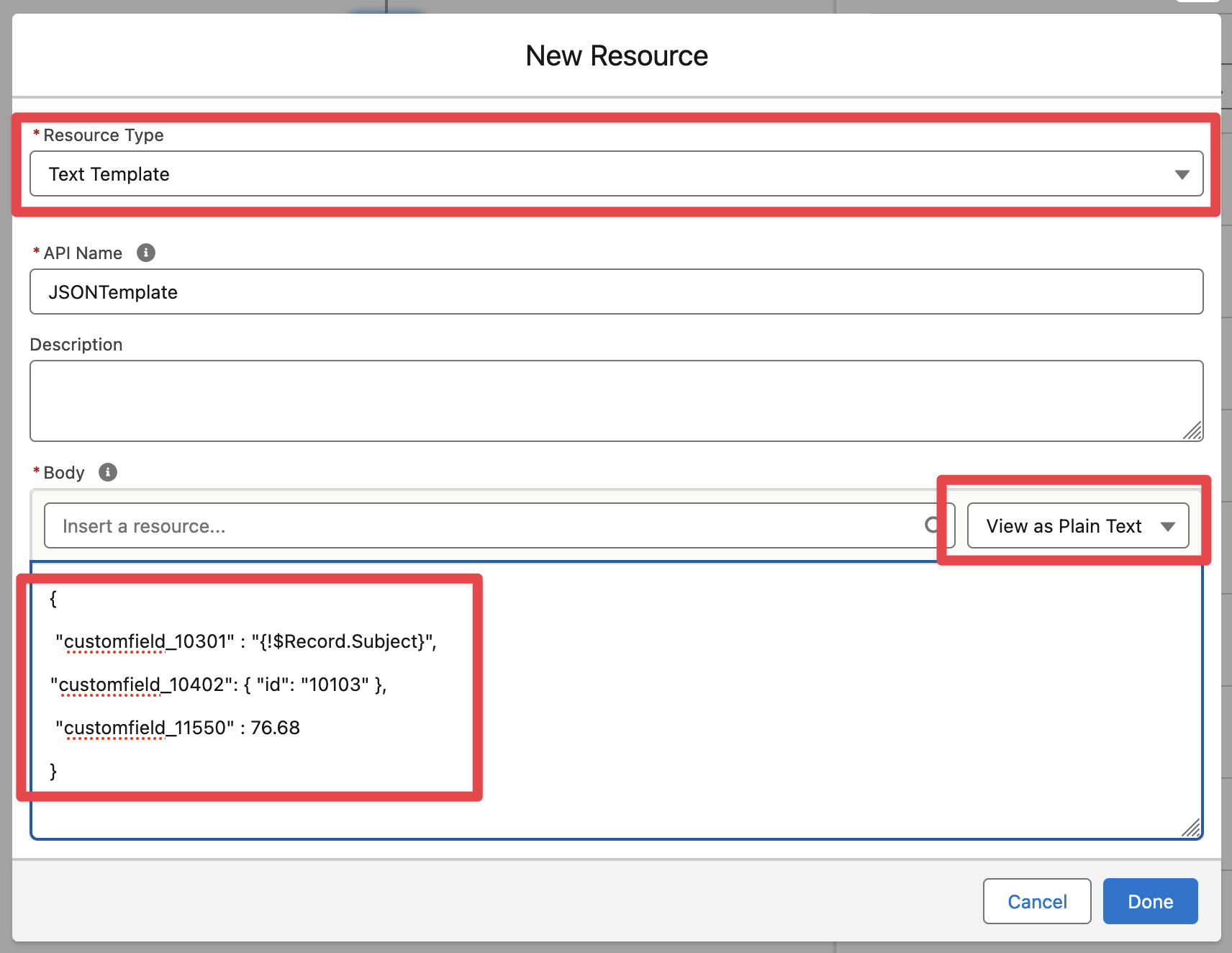

It is recommended to create a Text Template resource in the Flow Builder to build the JSON String, make sure to edit it in “View as Plain Text” mode:

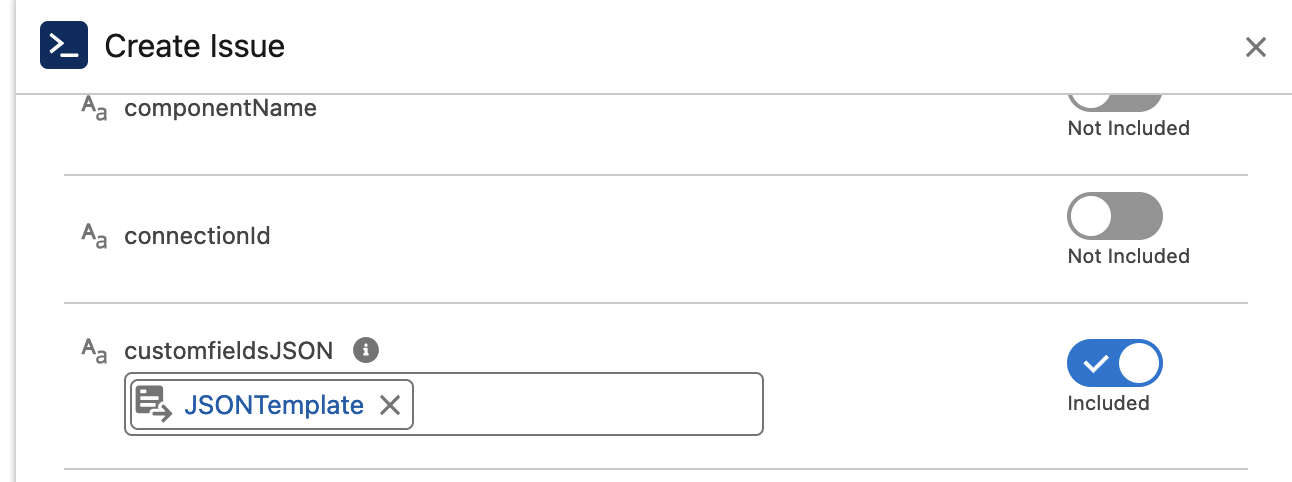

and pass the text template as the customFieldsJSON field in the Flow Action:

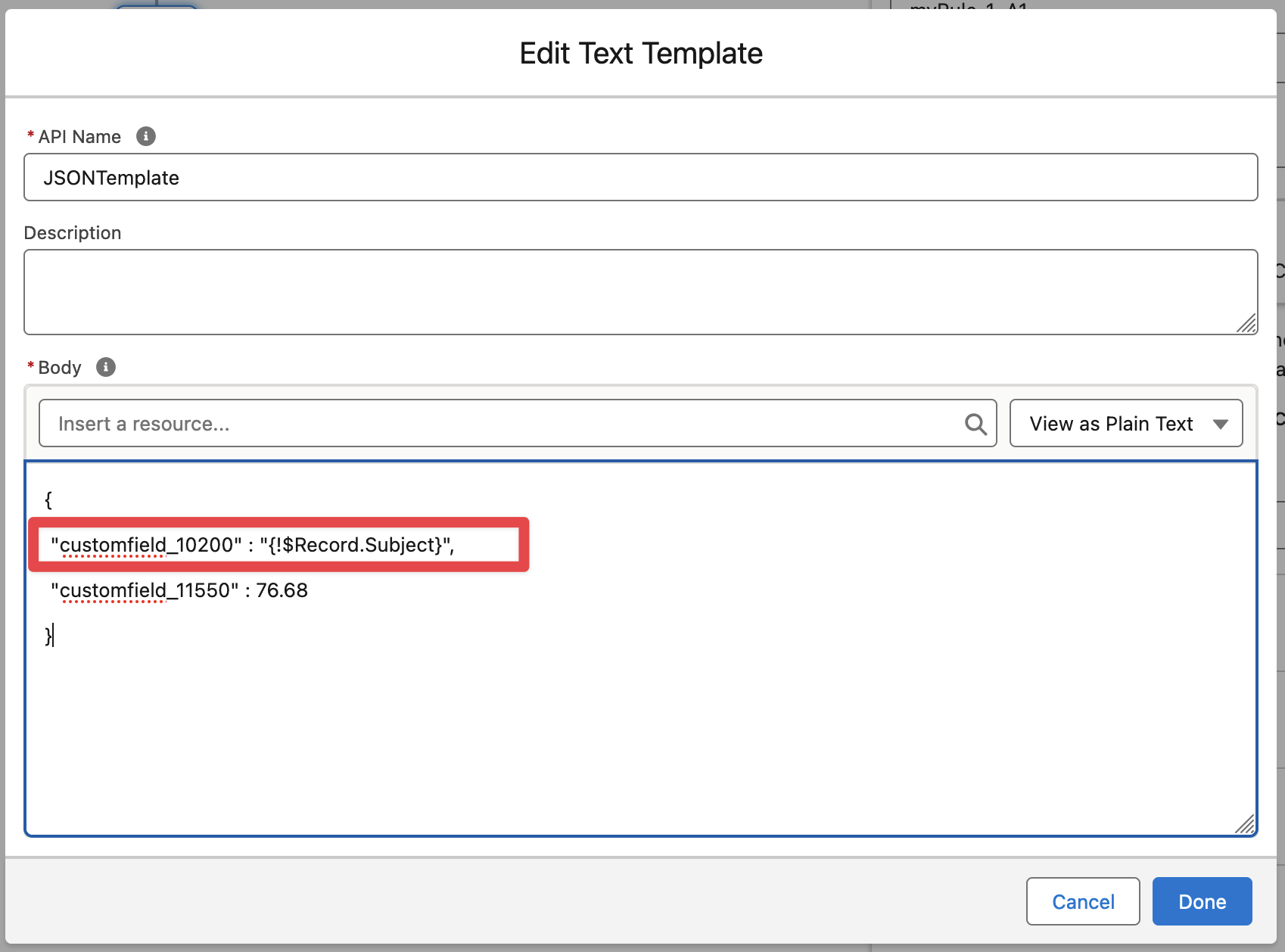

It is also possible pass Salesforce record fields by inserting resources in the text template, for example to pass the Case Subject into the text customfield_10200:

Example Flow to Create an Issue in Jira when Case Status changes to Escalated

The following example will create an Issue every time the Case status is updated to the “Escalated“ status.

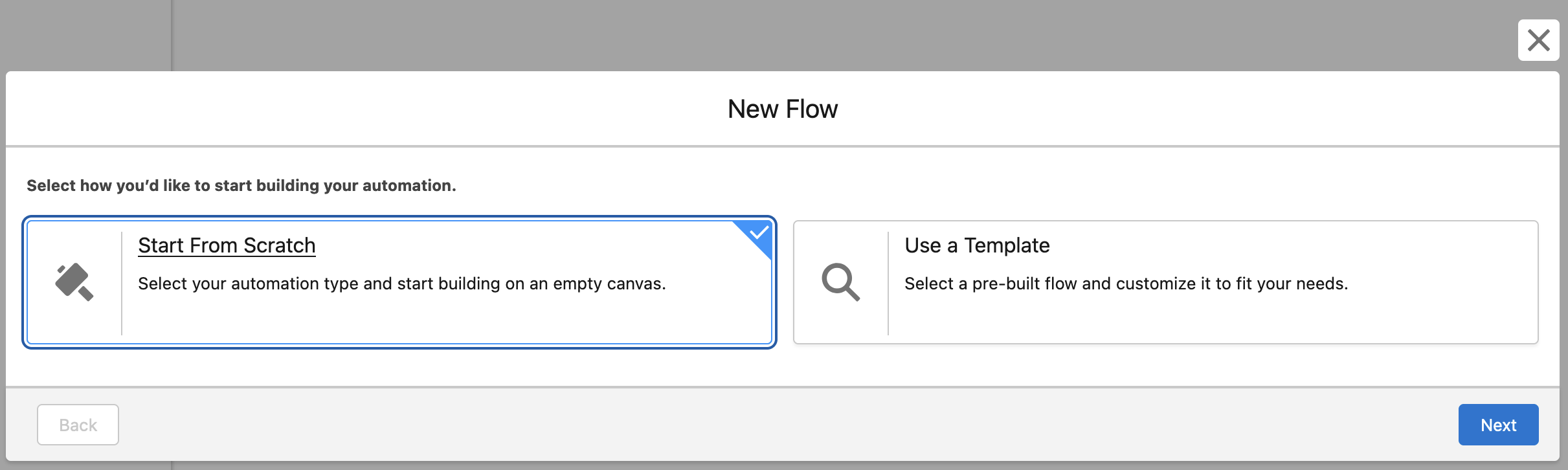

In Salesforce → Flows create a new Flow from scratch

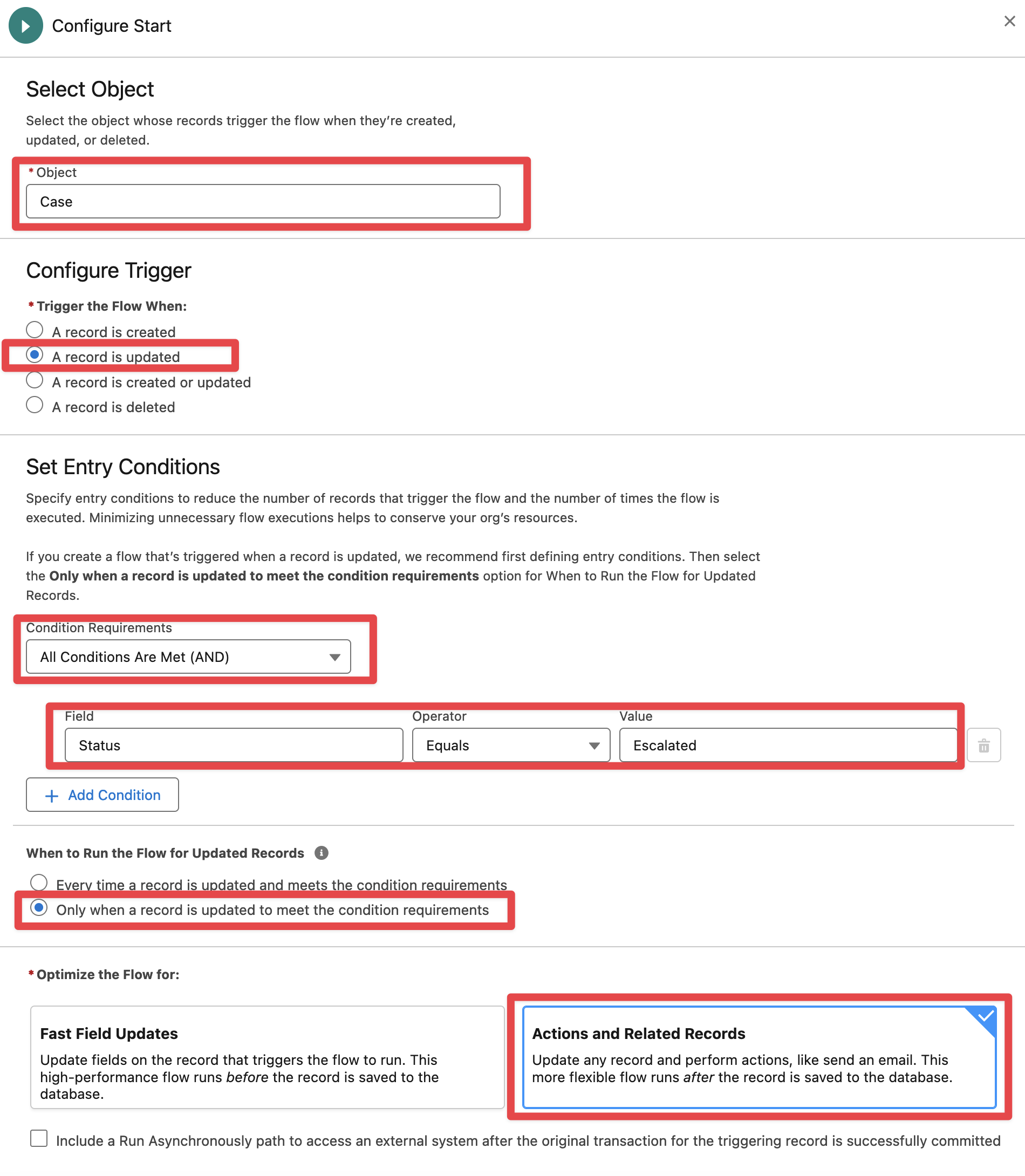

Select “Record-Triggered Flow“ and create, then select the Case Object and the conditions as follows:

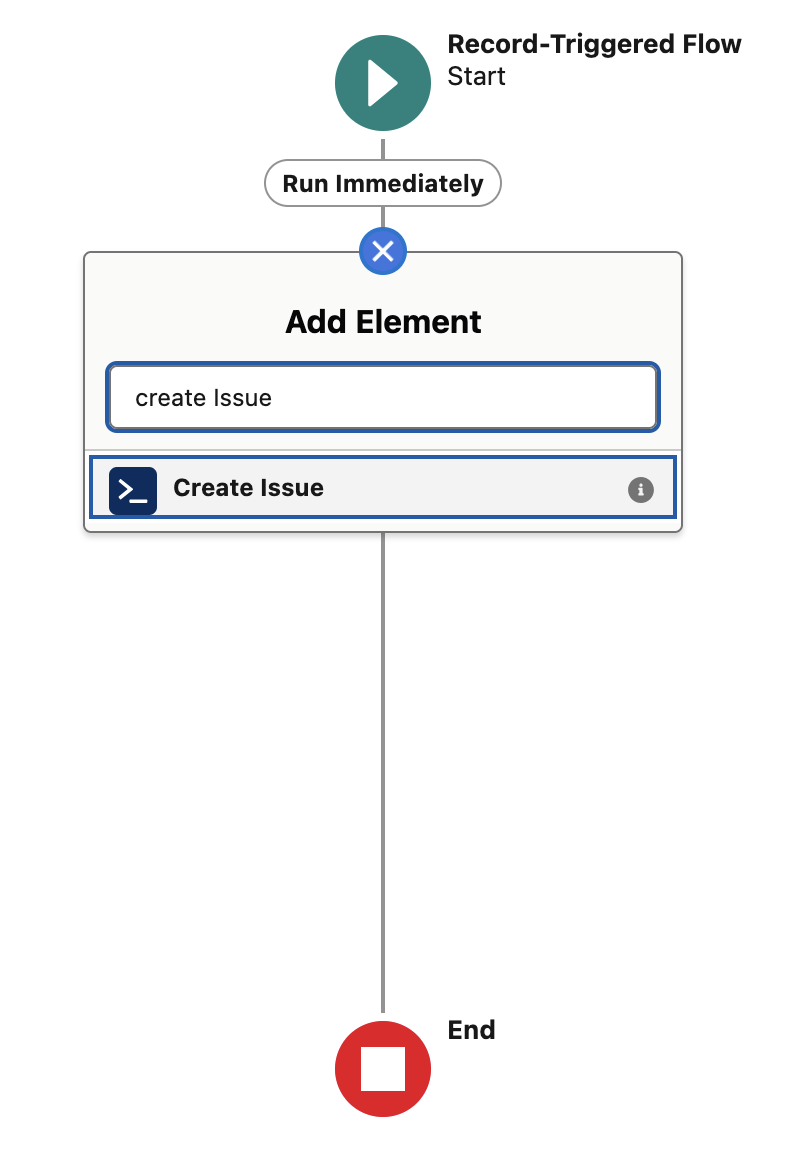

Add the “Create Issue” Flow Action

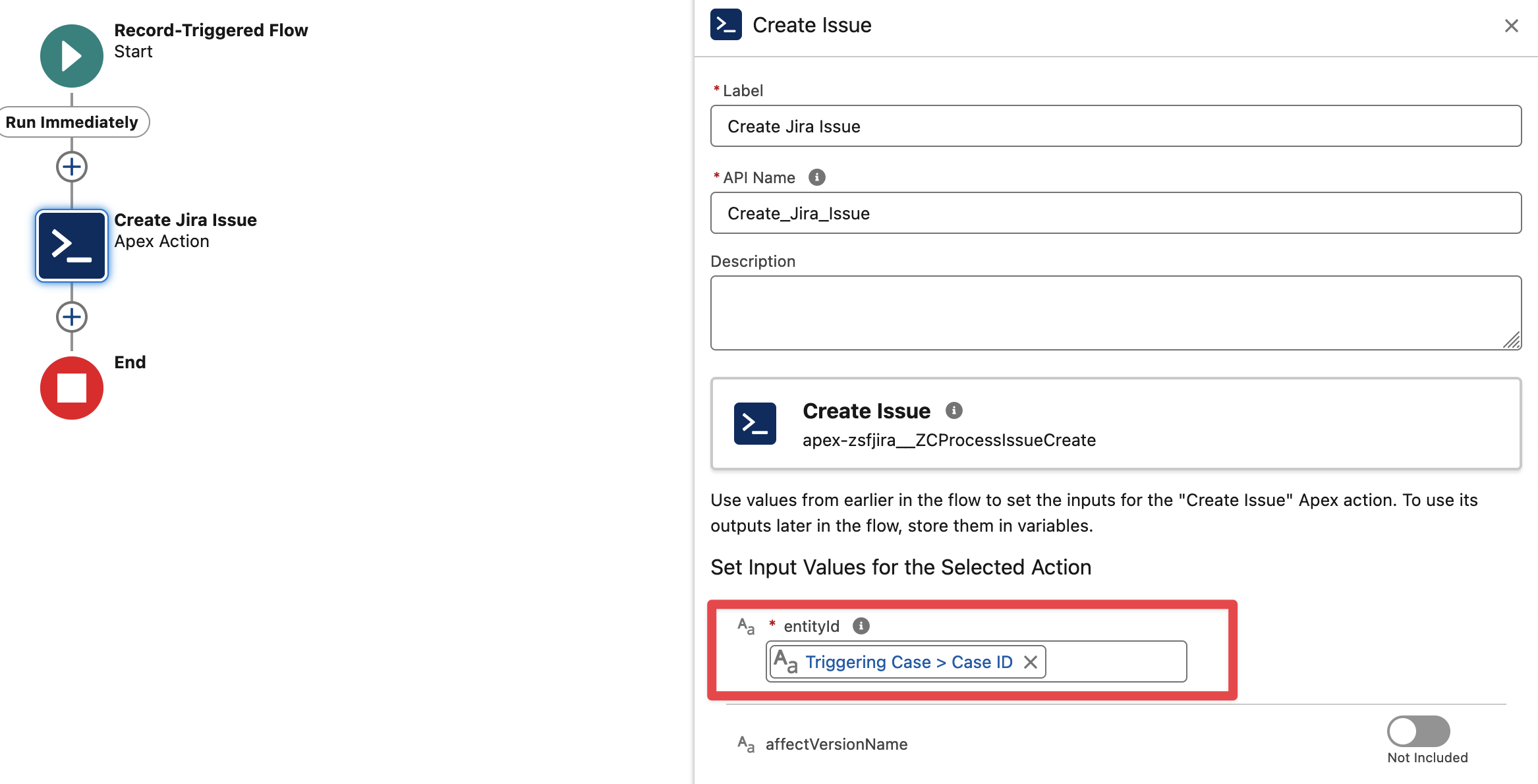

Make sure to pass the Case ID in the entityId field

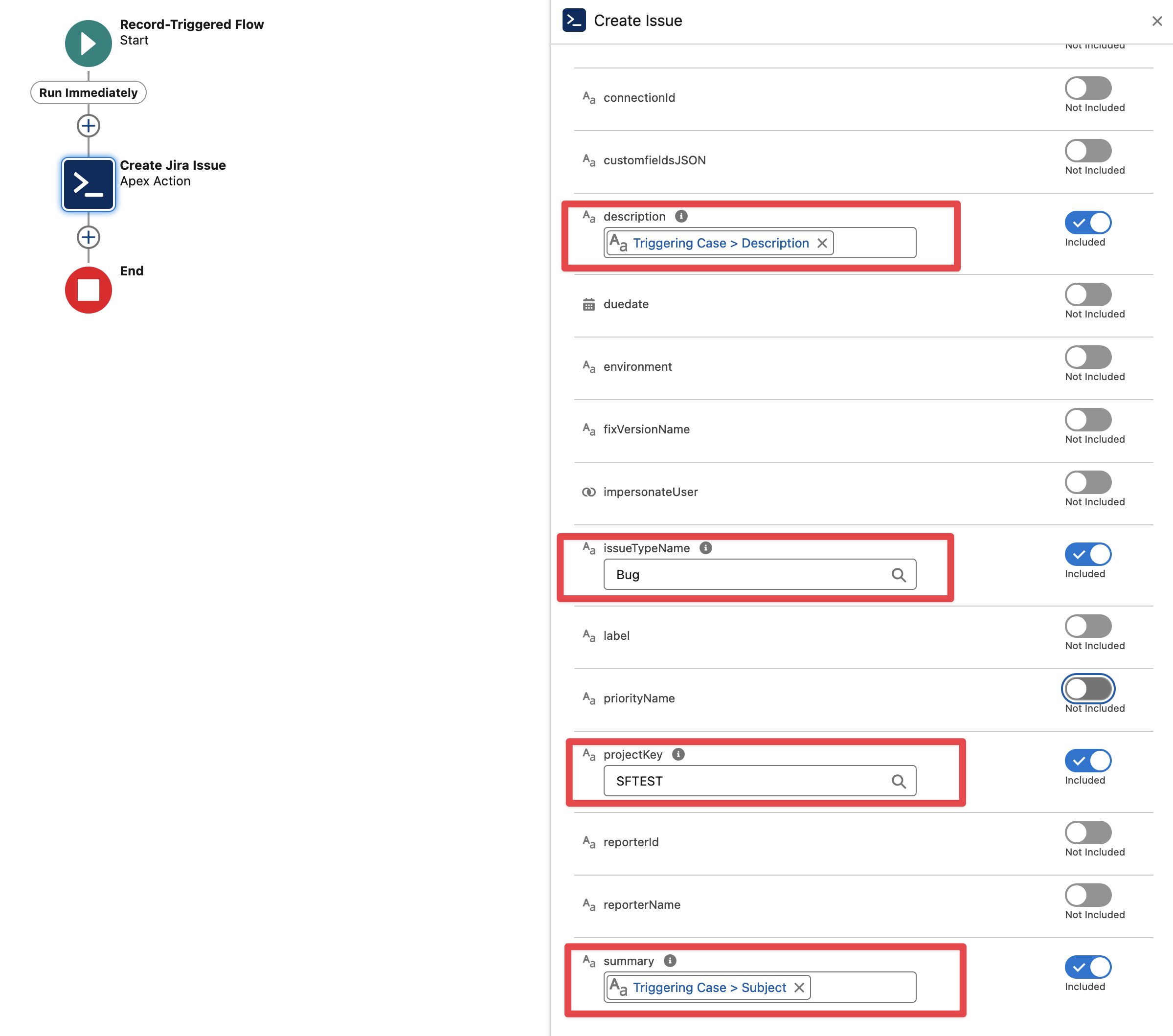

Set the Jira Project key and Issue Type (relevant to your Jira) and map summary and description fields from Case fields:

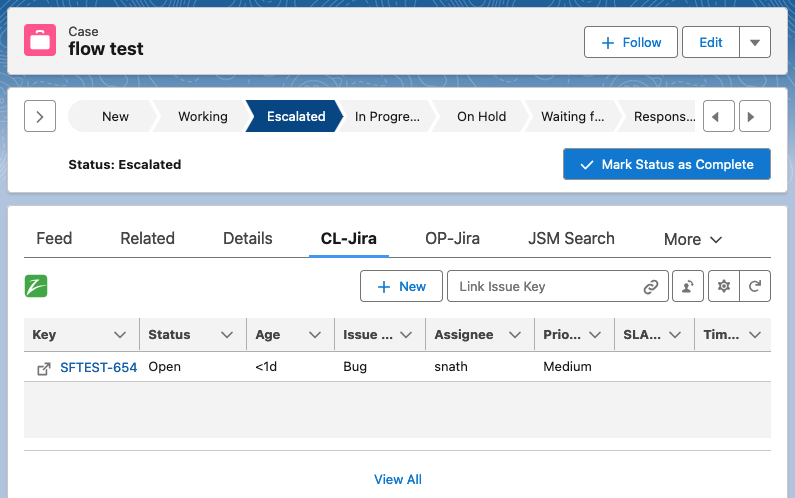

Finally Save and Activate the flow. Then go to a Case and update the Case Status to “Escalated“, a new Jira Issue must be automatically created, refresh the page to view the Issue in the Related Jira Issues Section.
