zAgileConnect API – Link and Unlink Jira Issues from Salesforce – Usage & Examples

Please note that zAgileConnect license is required for a Salesforce user to invoke this API. The methods will throw a zsfjira.ZC.ZCApiLicenceException when executed by a user without a zAgileConnect license

Link a Jira Issue to a Case

Use the following method to create a Link between a Case and an Issue (using Case ID and Issue Key):

CODE

zsfjira.ZC.Issues.linkIssue('TP-1',Id.valueOf('5000H00000xLWAd'));

Linking an Issue for a different Jira Connection

As in the example above, if the Jira Connection ID is not specified, the Jira marked as 'Default' in zAgileConnect Settings is assumed:

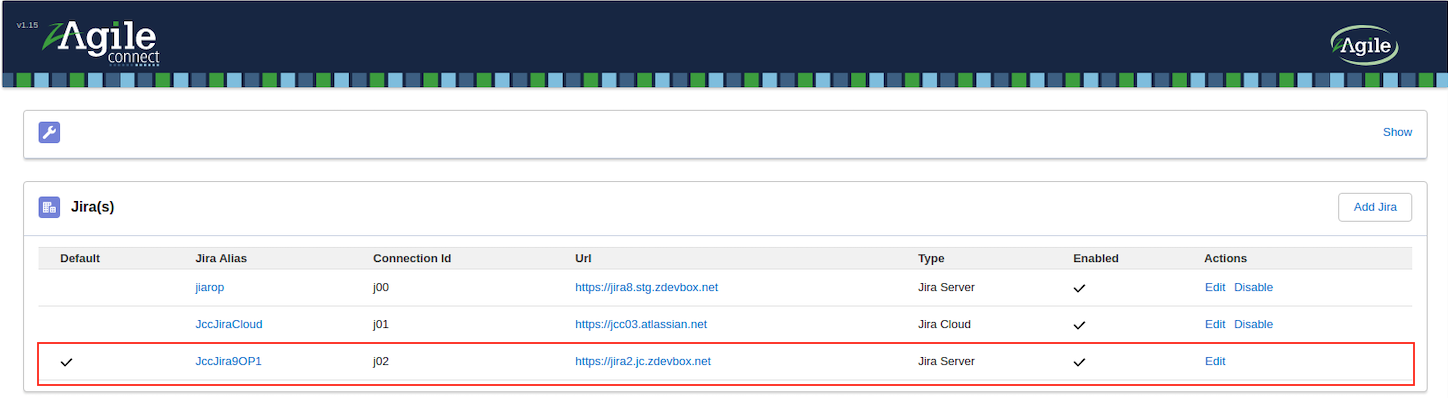

To specify a different Jira other than 'Default', use the Connection ID related to that Jira. You can find the Connection ID in the zAgileConnect Settings:

The Jira Connection ID is a unique identifier to use when calling the zAgileConnect API for specifying a Jira. For example, to link an issue in Jira JccJiraCloud, specify its Jira Connection ID j01 when calling the method:

CODE

zsfjira.ZC.Issues.linkIssue('j01', 'TP-1',Id.valueOf('5000H00000xLWAd'));

Error Handling

The operation will return an object containing the result of the Link operation including any errors.

CODE

zsfjira.ZCBeans.IssueLinkUnlinkResult result = zsfjira.ZC.Issues.linkIssue('TP-1',Id.valueOf('5000H00000xLWAd'));
if(result.hasError()){
    System.debug(System.LoggingLevel.ERROR,result.errorMessage);
}

License Handling

All operations included in this API require the user to have a valid zAgileConnect license. Try/Catch block below shows how to catch exceptions.

CODE

try{
    zsfjira.ZCBeans.IssueLinkUnlinkResult result = zsfjira.ZC.Issues.linkIssue('TP-1',Id.valueOf('5000H00000xLWAd'));
}catch(Exception exe){
    ...
}

Posting Errors

You can publish the errors to the Case by invoking the method postErrorMessages

CODE

Id caseId = Id.valueOf('5000H00000zdi30');
zsfjira.ZCBeans.IssueLinkUnlinkResult result = zsfjira.ZC.Issues.linkIssue('JP-1',caseId);
zsfjira.ZC.Issues.postErrorMessage(caseId,result);

Bulk Operations

Please use the Bulk operations if you want to Link multiple issues. You can not Link multiple issues by iterating through the single Link operations.

Create a set of strings holding the Issue Keys to be linked:

CODE

Set<String> issueKeys=new Set<String>();
issueKeys.add('TP-1');
issueKeys.add('TP-6');
issueKeys.add('TP-7');

Use the method linkIssues():

CODE

List<zsfjira.ZCBeans.IssueLinkUnlinkResult> results = zsfjira.ZC.Issues.linkIssues(issueKeys,Id.valueOf('5000H00000xLWAd'));

for linking issues of a different Jira, specify its connection as first parameter:

CODE

List<zsfjira.ZCBeans.IssueLinkUnlinkResult> results = zsfjira.ZC.Issues.linkIssues('j01', issueKeys,Id.valueOf('5000H00000xLWAd'));

Similar to single Link, the method will return a list of results.

CODE

for(zsfjira.ZCBeans.IssueLinkUnlinkResult result:results){
    if(result.hasError()){
        System.debug(System.LoggingLevel.ERROR,result.errorMessage);
    }
}

Link Issues via Process Builder

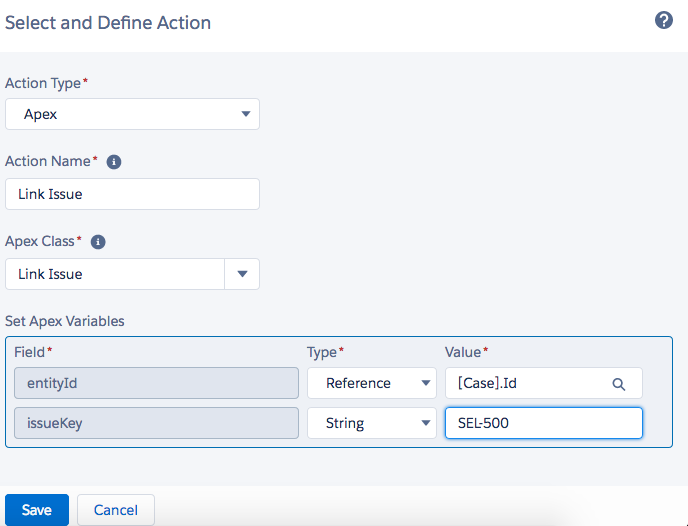

Select the Apex class ‘Link Issue’ and specify a Case ID and Issue Key:

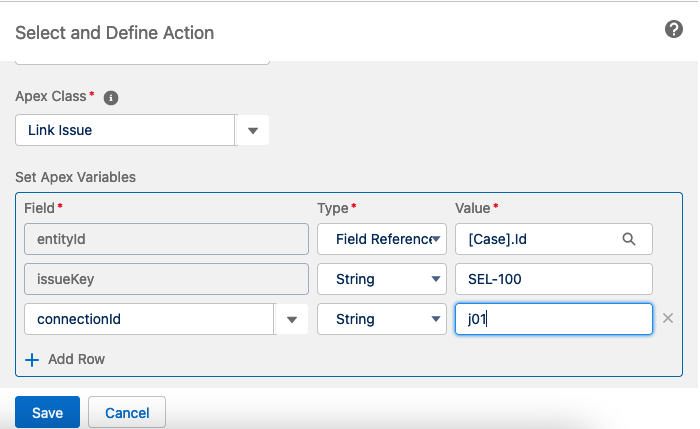

In the Apex action for linking issues you can specify the Jira Connection ID in case you need to link an Issue of a Jira different than the 'Default':

Any errors during the Link operation will be notified through email

Unlink a Jira Issue

To Unlink a Jira Issue from a Case, use the following method with Issue Key and Case ID:

CODE

zsfjira.ZC.Issues.unlinkIssue('TP-1',Id.valueOf('5000H00000xLWAd'));

for unlinking issues of a different Jira, specify its connection as first parameter:

CODE

zsfjira.ZC.Issues.unlinkIssue('j01', 'TP-1',Id.valueOf('5000H00000xLWAd'));

Error Handling

The operation will return an object containing the result of the Unlink operation.

CODE

zsfjira.ZCBeans.IssueLinkUnlinkResult result = zsfjira.ZC.Issues.unlinkIssue('TP-1',Id.valueOf('5000H00000xLWAd'));
if(result.hasError()){
    System.debug(System.LoggingLevel.ERROR,result.errorMessage);
}

License Handling

The API requires a valid zAgileConnect license. You can catch the exception, if needed.

CODE

try{
    zsfjira.ZCBeans.IssueLinkUnlinkResult result = zsfjira.ZC.Issues.unlinkIssue('TP-1',Id.valueOf('5000H00000xLWAd'));
}catch(Exception exe){
    ...
}

Posting Errors

You can post the errors as a result of the operation to the parent entity (Case).

CODE

Id caseId = Id.valueOf('5000H00000zdi30');
zsfjira.ZCBeans.IssueLinkUnlinkResult result = zsfjira.ZC.Issues.unlinkIssue('JP-1',caseId);
zsfjira.ZC.Issues.postErrorMessage(caseId,result);

Bulk Unlink Operation

Create a set of strings containing the Issue Keys:

CODE

Set<String> issueKeys=new Set<String>();
issueKeys.add('TP-1');
issueKeys.add('TP-6');
issueKeys.add('TP-7');

Use the method unlinkIssues() with the set of Issue Keys from above and the Case ID:

CODE

List<zsfjira.ZCBeans.IssueLinkUnlinkResult> results = zsfjira.ZC.Issues.unlinkIssues(issueKeys,Id.valueOf('5000H00000xLWAd'));

for bulk unlinking issues of a different Jira, specify its connection as first parameter:

CODE

List<zsfjira.ZCBeans.IssueLinkUnlinkResult> results = zsfjira.ZC.Issues.unlinkIssues('j01', issueKeys,Id.valueOf('5000H00000xLWAd'));

The method returns a list of results from the operation:

CODE

for(zsfjira.ZCBeans.IssueLinkUnlinkResult result:results){
    if(result.hasError()){
        System.debug(System.LoggingLevel.ERROR,result.errorMessage);
    }
}

Unlink Issues via Process Builder

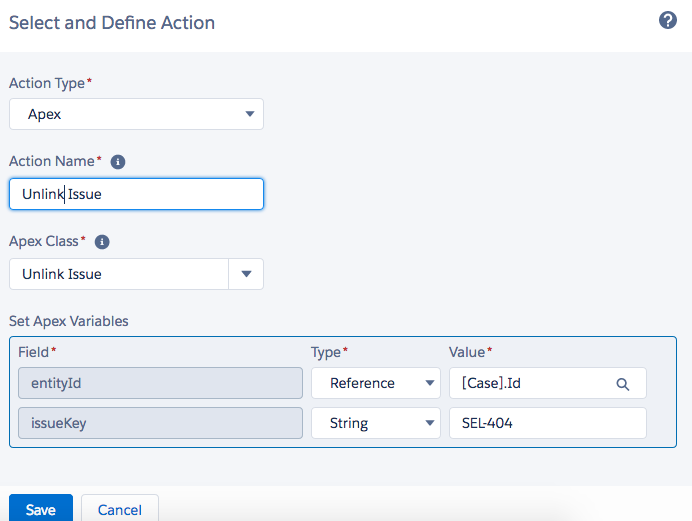

Select the Apex class ‘Unlink Issue’ and specify a Case ID and Issue Key:

In the Apex action for unlinking issues you can specify the Jira Connection ID in case you need to unlink an Issue of a Jira different than the 'Default':

Errors during the Unlink operation are notified via email

Delete a Jira Issue

To Delete an Issue, call the following method with an Issue Key and an Entity ID:

CODE

zsfjira.ZC.Issues.deleteIssue('TP-1',Id.valueOf('5000H00000xLWAd'));

Only Jira Issues created from the Salesforce entity specified in the method may be deleted.

For deleting issues of a different Jira, specify its connection as first parameter:

CODE

zsfjira.ZC.Issues.deleteIssue('j01','TP-1',Id.valueOf('5000H00000xLWAd'));

Error Handling

The Delete operation will return an object containing the result of the operation.

CODE

zsfjira.ZCBeans.IssueDeleteResult result = zsfjira.ZC.Issues.deleteIssue('TP-1',Id.valueOf('5000H00000xLWAd'));
if(result.hasError()){
    System.debug(System.LoggingLevel.ERROR,result.errorMessage);
}

License Handling

The API requires a valid zAgileConnect license in order to execute. You may catch the exception if needed.

CODE

try{
    zsfjira.ZCBeans.IssueLinkUnlinkResult result = zsfjira.ZC.Issues.deleteIssue('TP-1',Id.valueOf('5000H00000xLWAd'));
}catch(Exception exe){
    ...
}

Posting Errors

You can post the errors to the parent entity (Case).

CODE

Id caseId = Id.valueOf('5000H00000zdi30');
zsfjira.ZCBeans.IssueLinkUnlinkResult result = zsfjira.ZC.Issues.deleteIssue('JP-1',caseId);
zsfjira.ZC.Issues.postErrorMessage(caseId,result);

Bulk Operations

Create a set of strings holding the Issue Keys:

CODE

Set<String> issueKeys=new Set<String>();
issueKeys.add('TP-1');
issueKeys.add('TP-6');
issueKeys.add('TP-7');

Use the method deleteIssues() with the above set and the Case ID:

CODE

List<zsfjira.ZCBeans.IssueDeleteResult> results = zsfjira.ZC.Issues.deleteIssues(issueKeys,Id.valueOf('5000H00000xLWAd'));

For deleting issues of a different Jira, specify its connection as first parameter:

CODE

List<zsfjira.ZCBeans.IssueDeleteResult> results = zsfjira.ZC.Issues.deleteIssues('j01', issueKeys,Id.valueOf('5000H00000xLWAd'));

Iterate the returned list in order to get the results of the Unlink operation:

CODE

for(zsfjira.ZCBeans.IssueDeleteResult result:results){
    if(result.hasError()){
        System.debug(System.LoggingLevel.ERROR,result.errorMessage);
    }
}

Delete Issues via Process Builder

Select the Apex class ‘Delete Issue’ and specify a Case ID and Issue Key.

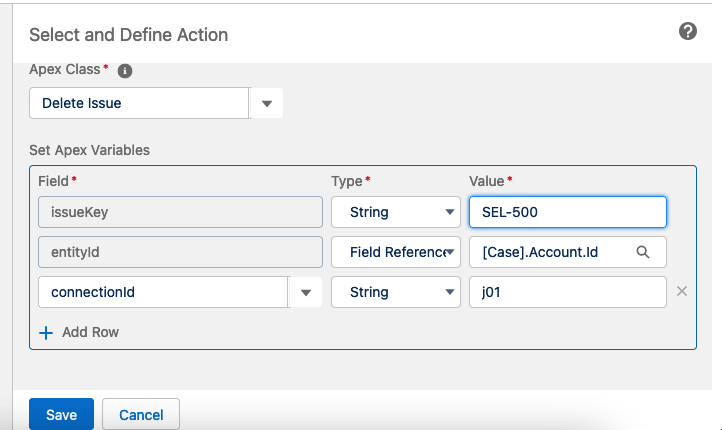

In the Apex action for deleting issues, you can specify the Jira Connection ID to delete an Issue of a Jira other than the 'Default':

Errors during the Delete operation will be notified via email.
