OAuth 2.0 Setup - Sign in to Jira from Salesforce

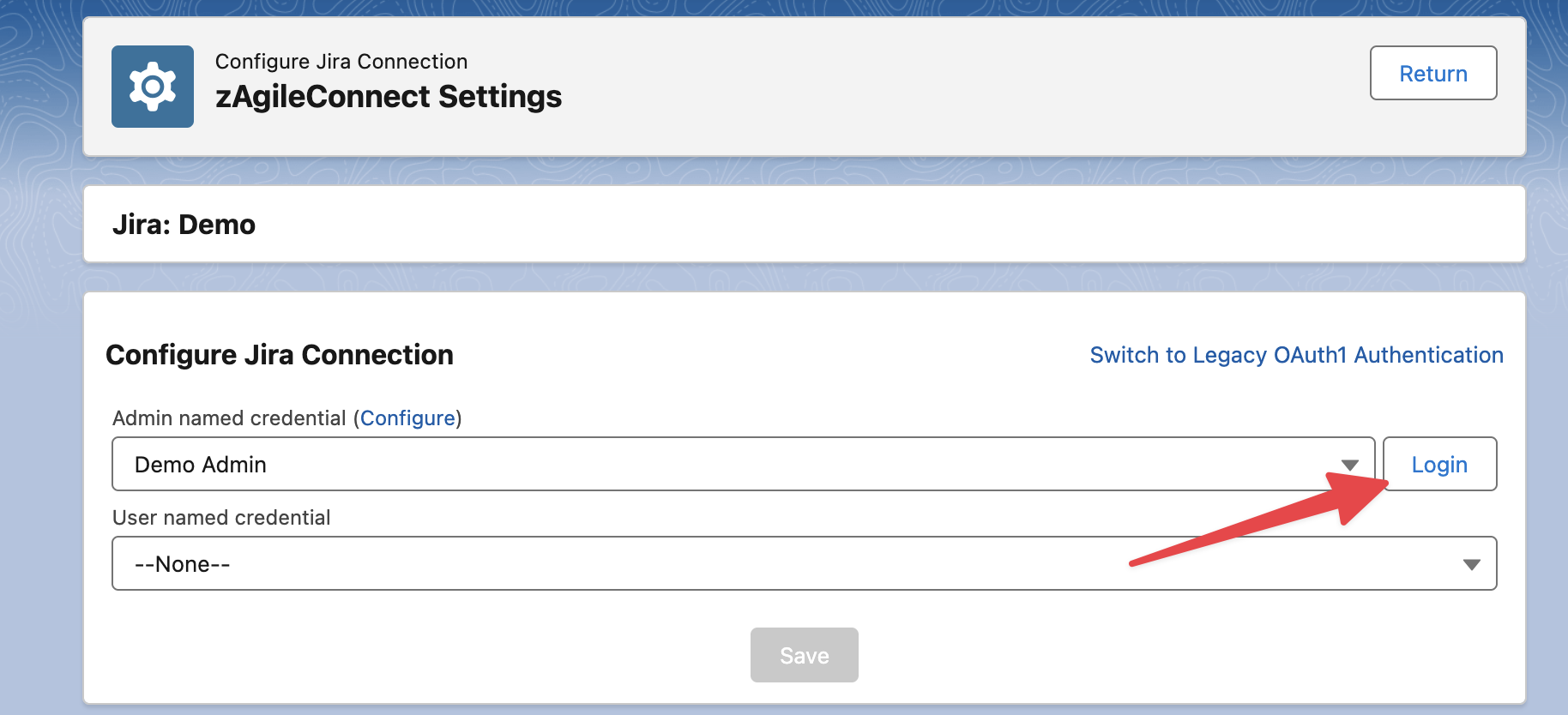

In the Configure Jira Connection screen, click on the Login button

CleanShot 2025-06-04 at 18.38.24@2x-20250604-233834.png

It will open a new popup to authenticate, use a Jira account designated for this integration.

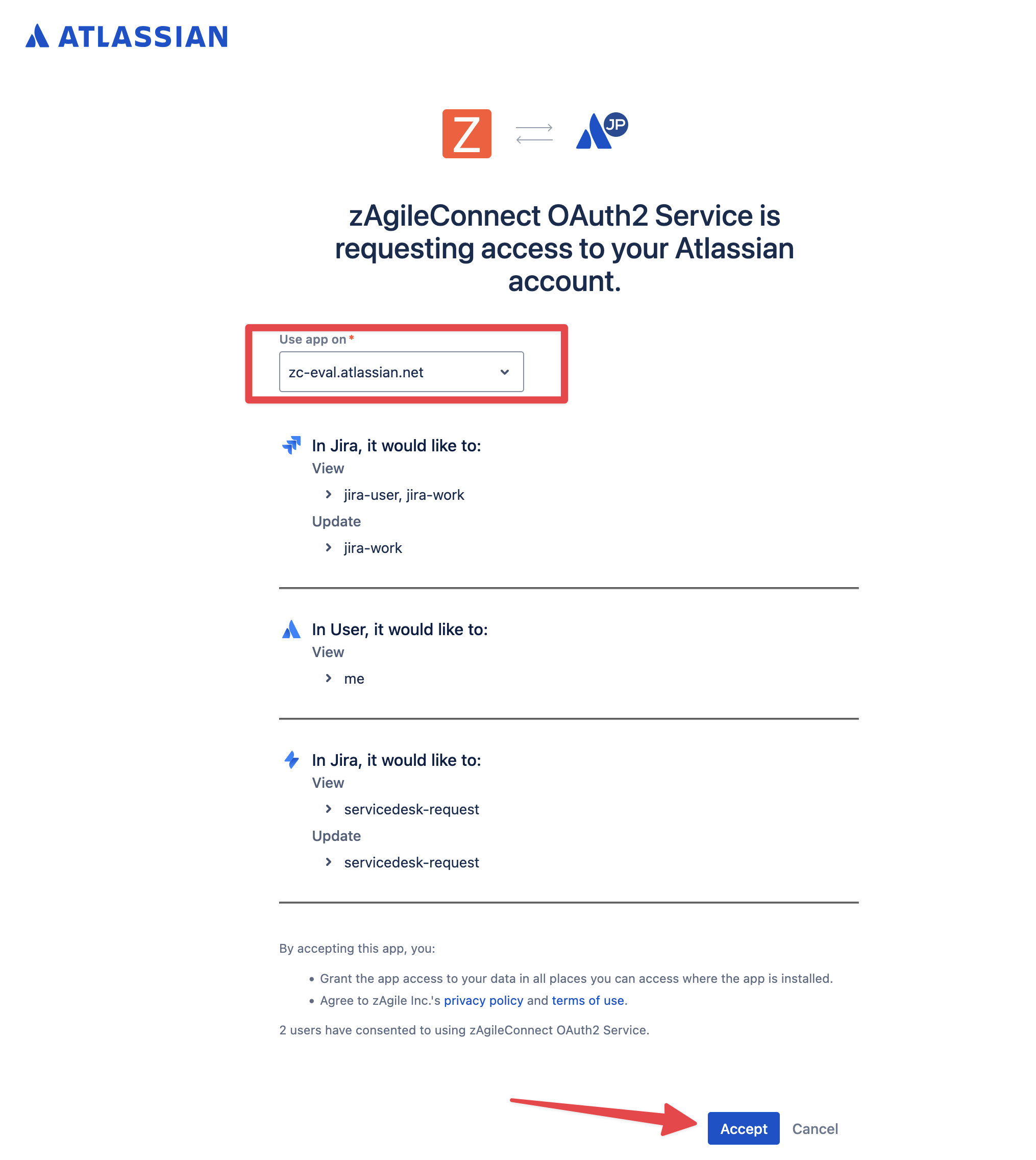

Allow access to your Jira Cloud instance (select the Jira instance in the dropdown) and Accept

CleanShot 2025-06-04 at 18.50.26@2x-20250604-235045.png

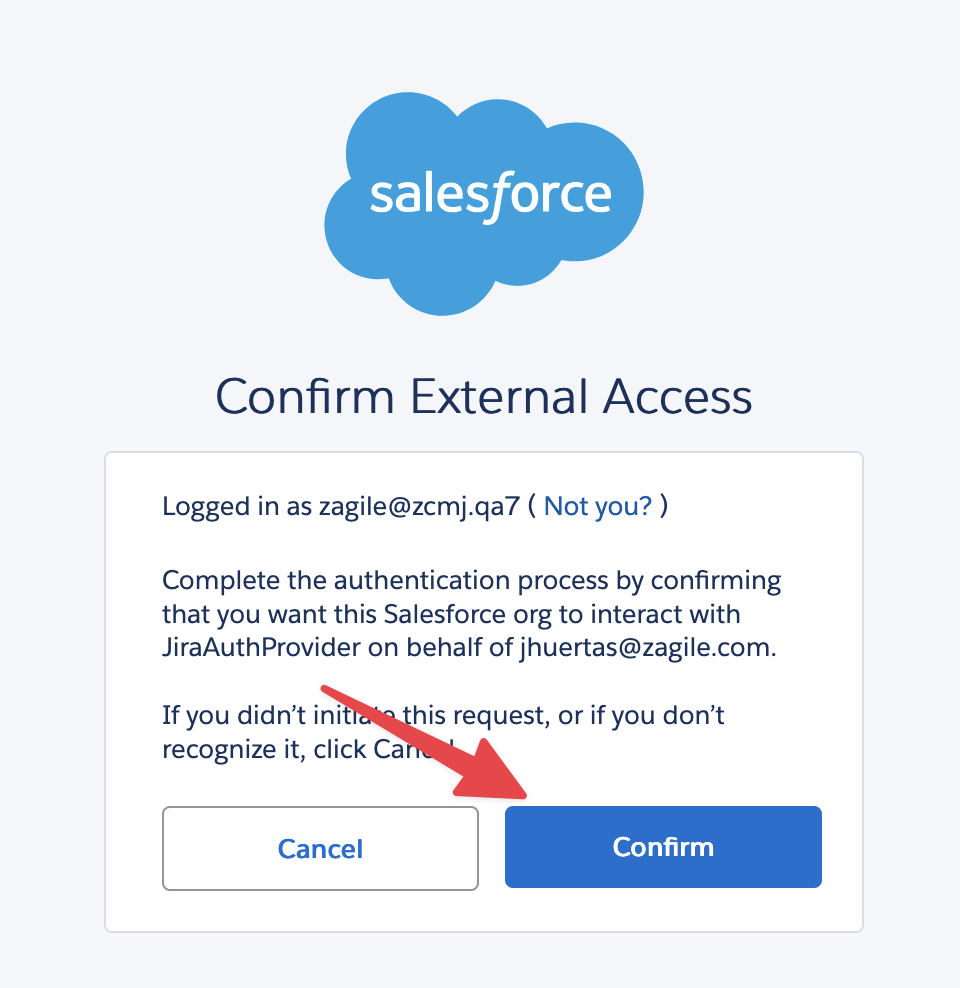

Confirm the External Access and Close the popup

CleanShot 2025-06-04 at 18.53.27@2x-20250604-235337.png

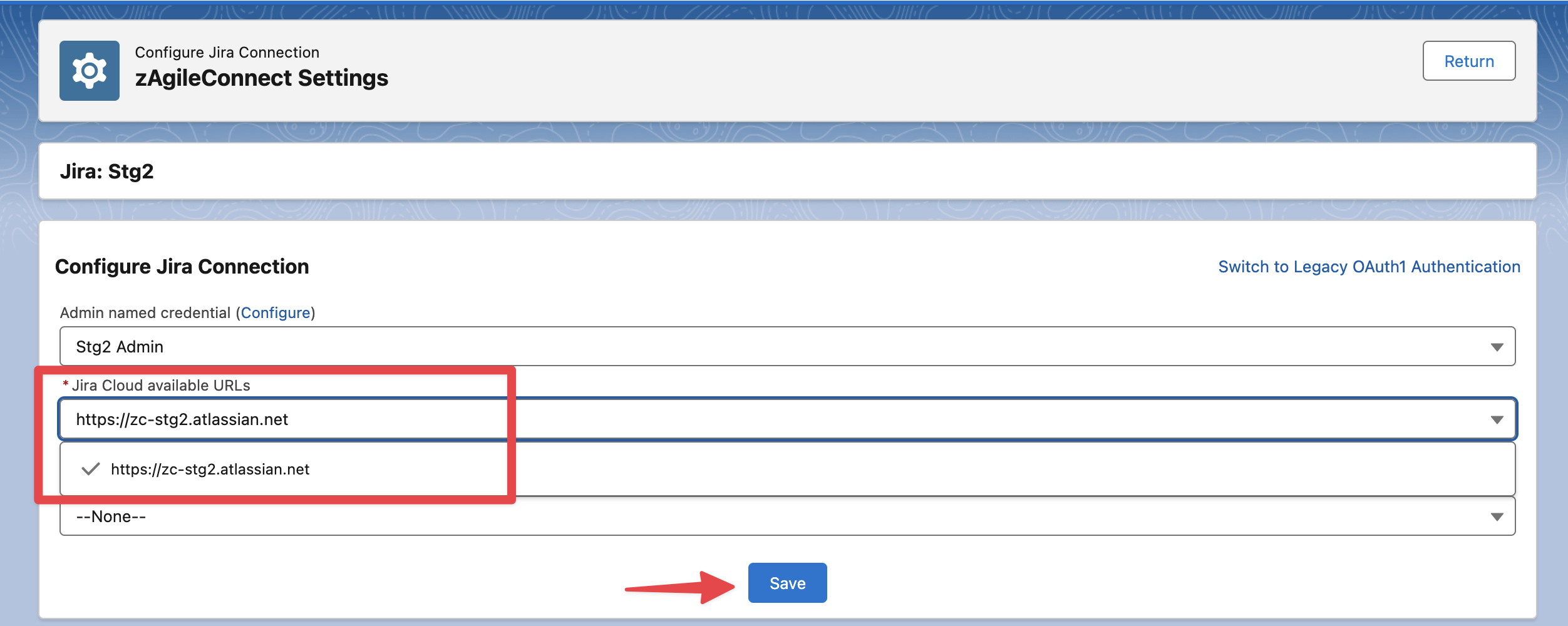

After closing the popup select the Jira Cloud instance URL and Save

CleanShot 2025-06-04 at 18.56.41@2x-20250604-235702.png

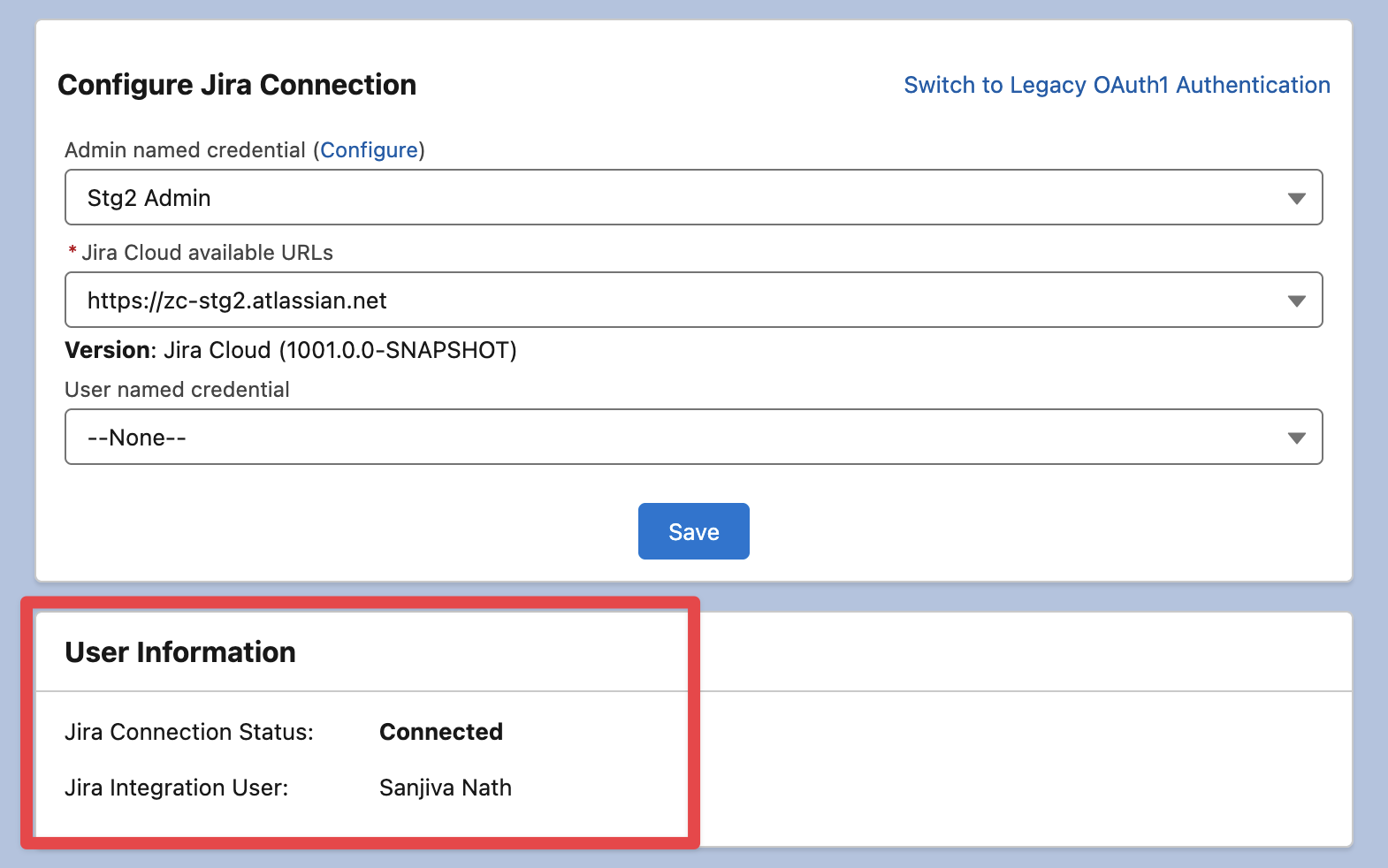

It should show the “Connected“ status and the related integration user information

CleanShot 2025-06-04 at 19.05.15@2x-20250605-000534.png
