OAuth 2.0 Setup - Create & Configure a Jira Connection

This step involves:

1. Creating a connection

2. Creating Named and External credentials to be used for callouts to Jira from Salesforce

3. Enabling Named credential for callouts

4. Linking the External Credential to the Auth. Provider created earlier

1. Creating a Connection

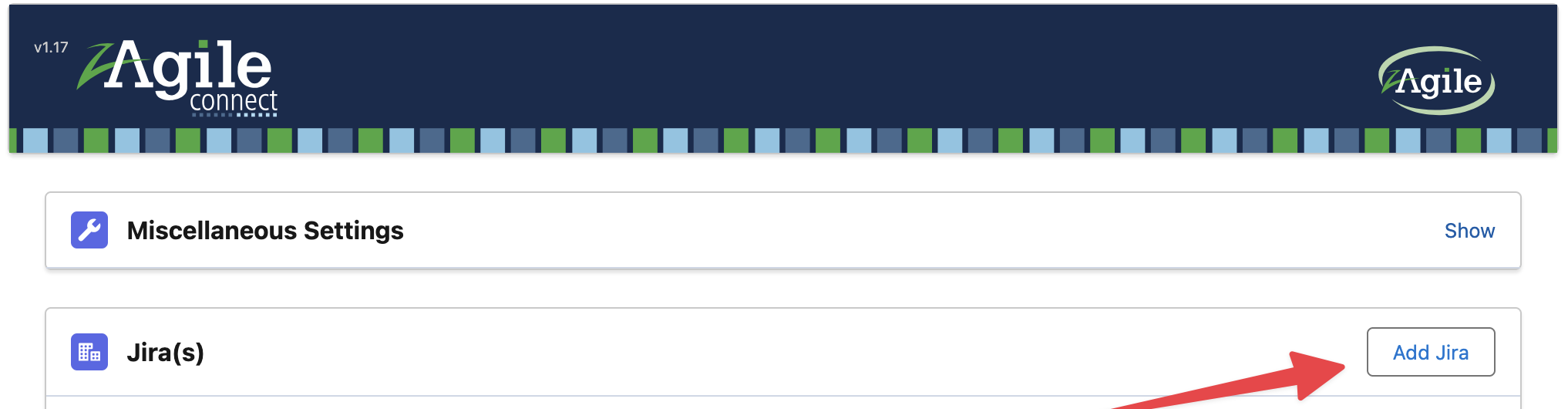

In zAgileConnect Setup add a new Jira and specify an Alias

Skip this step if there is already a connection to the Jira instance and/or you are migrating authentication from OAuth 1.0 → OAuth 2.0).

2. Creating Named and External Credentials

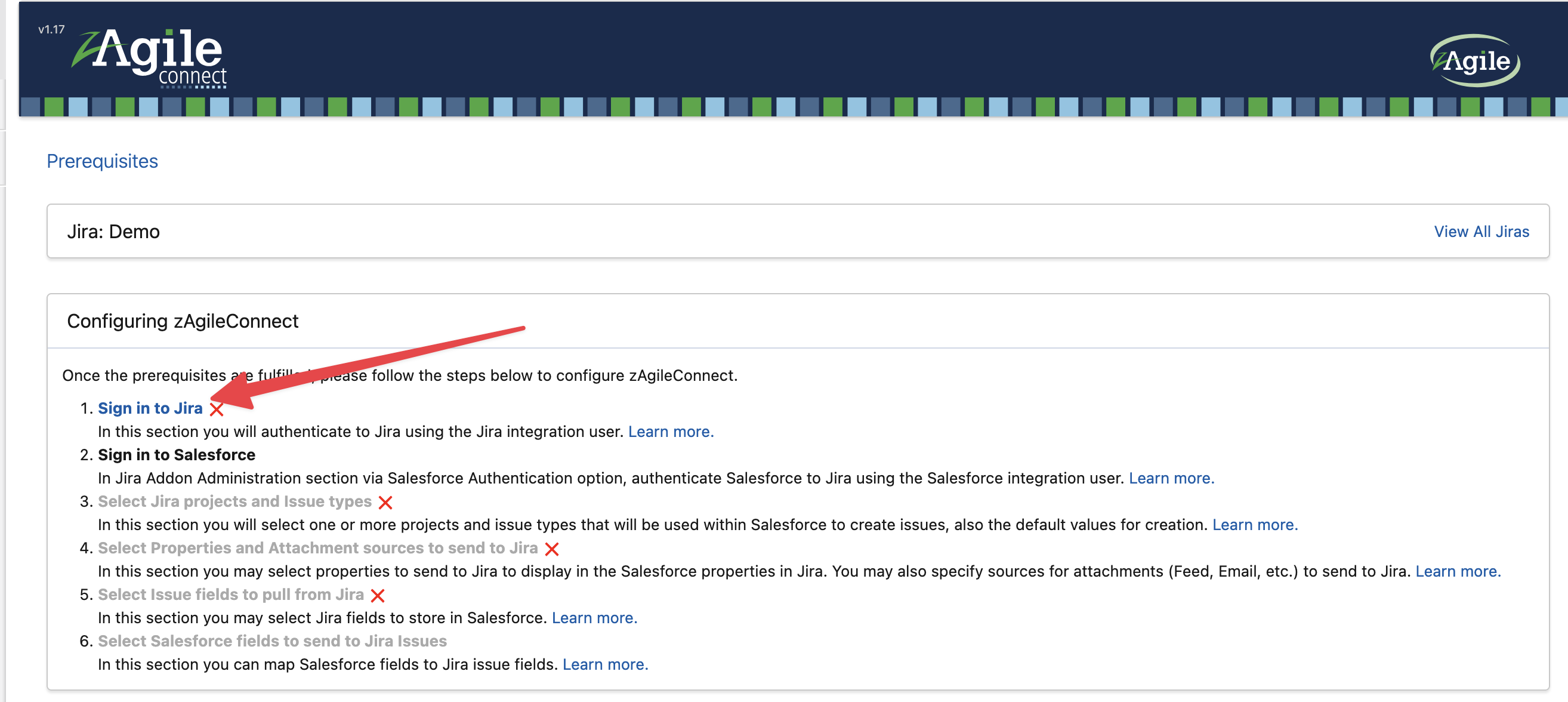

In the zAgileConnect package configuration -> Jira Connection Settings → Step 1 (Sign in to Jira),

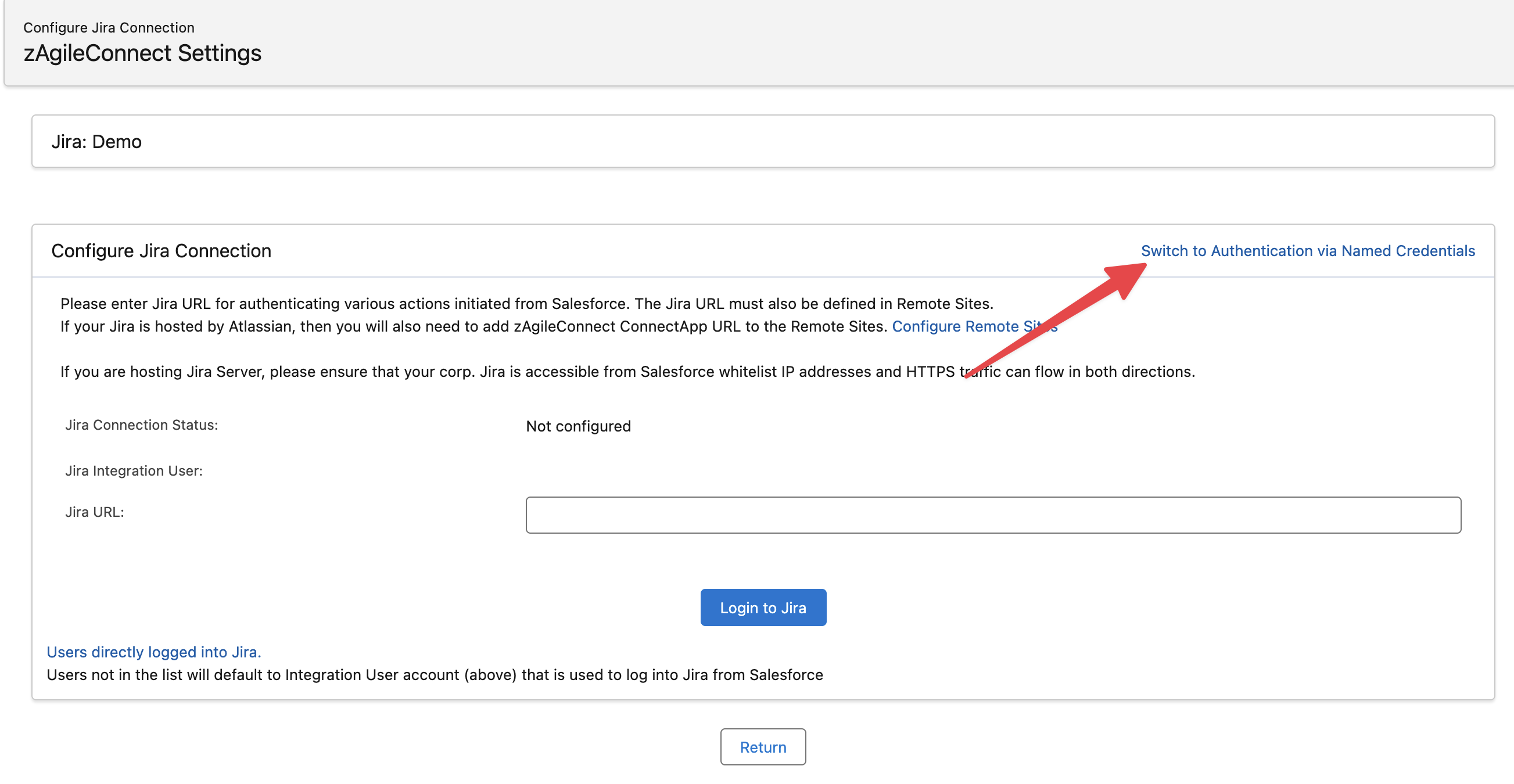

Switch to Authentication via Named Credentials link

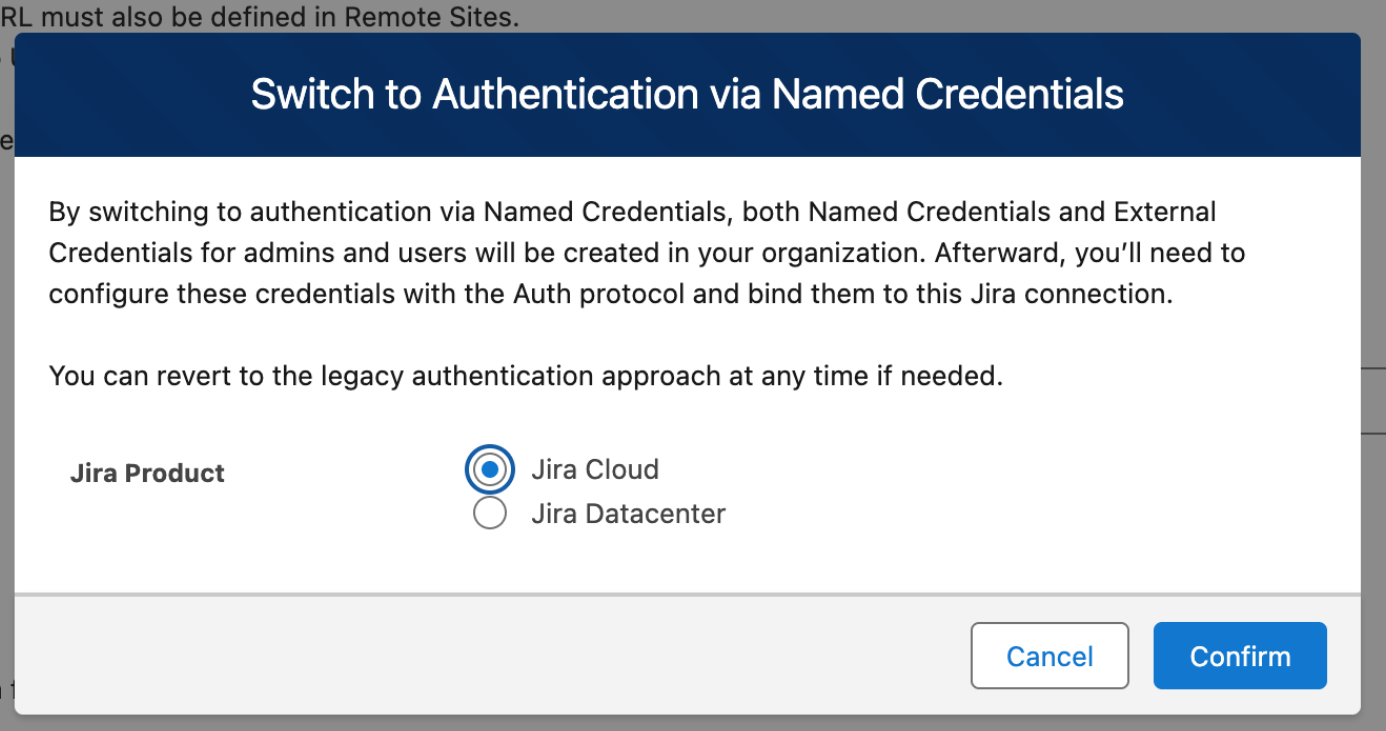

Select the Jira Product (Jira Cloud / Jira Data Center), if requested fill the Jira Base URL

After confirming, new Named Credential and External Credentials will be created.

3. Enabling Named credential

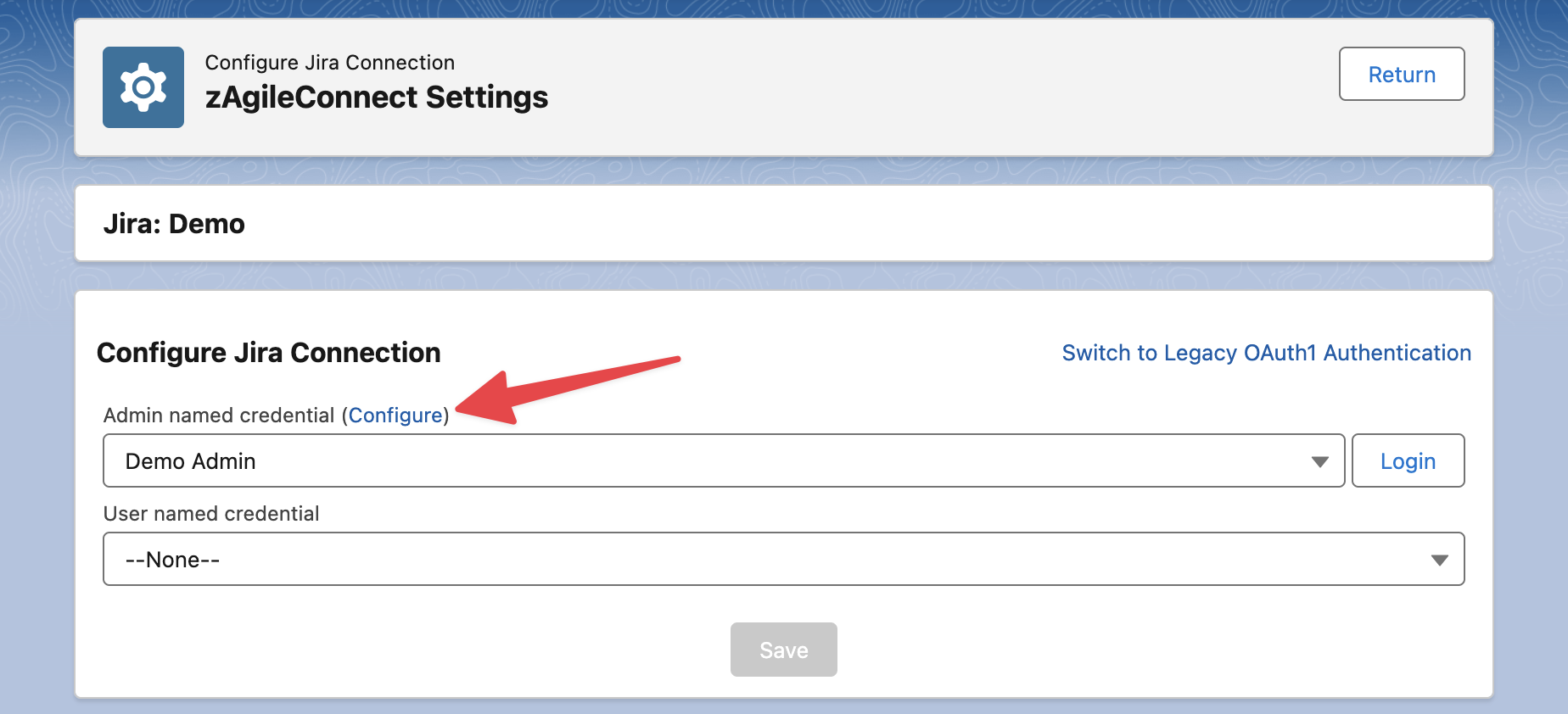

To access the named credential configuration go to the “Configure” link for the Admin Named Credential

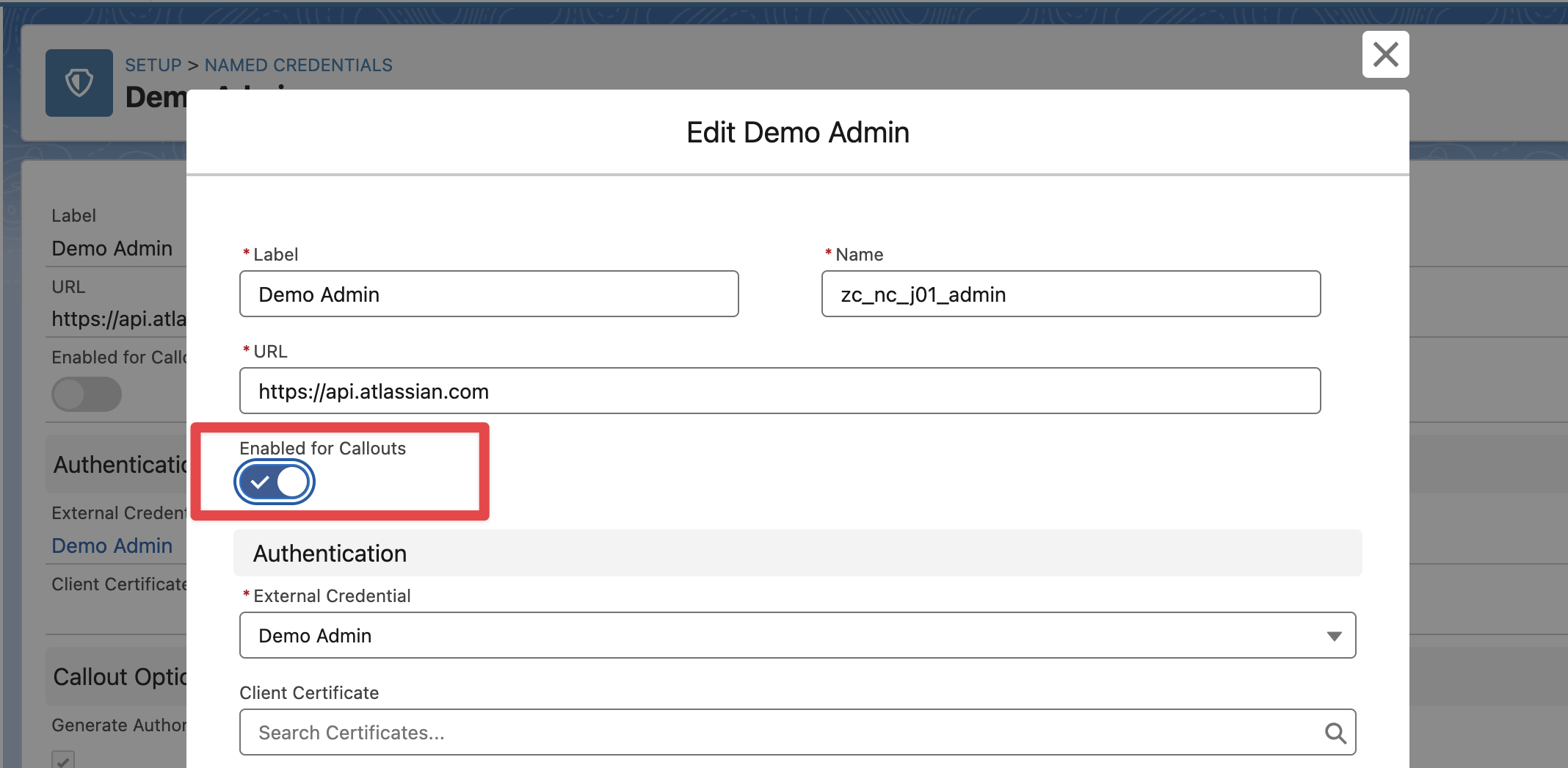

Edit the Named Credential, enable “Enable for Callouts“ option and Save.

4. Linking the External Credential to the Auth. Provider

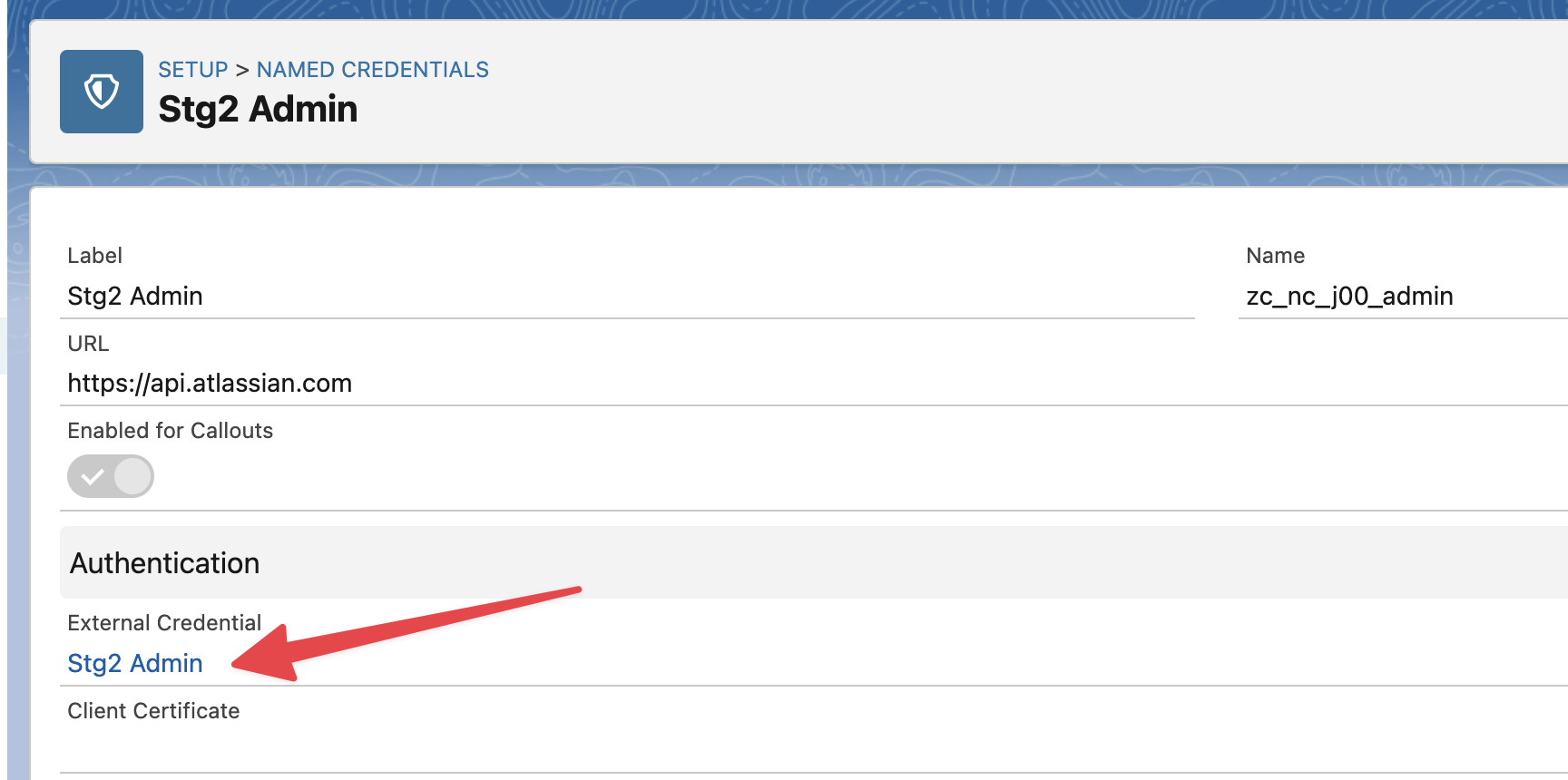

From the Named Credential page, go to the External Credential configuration

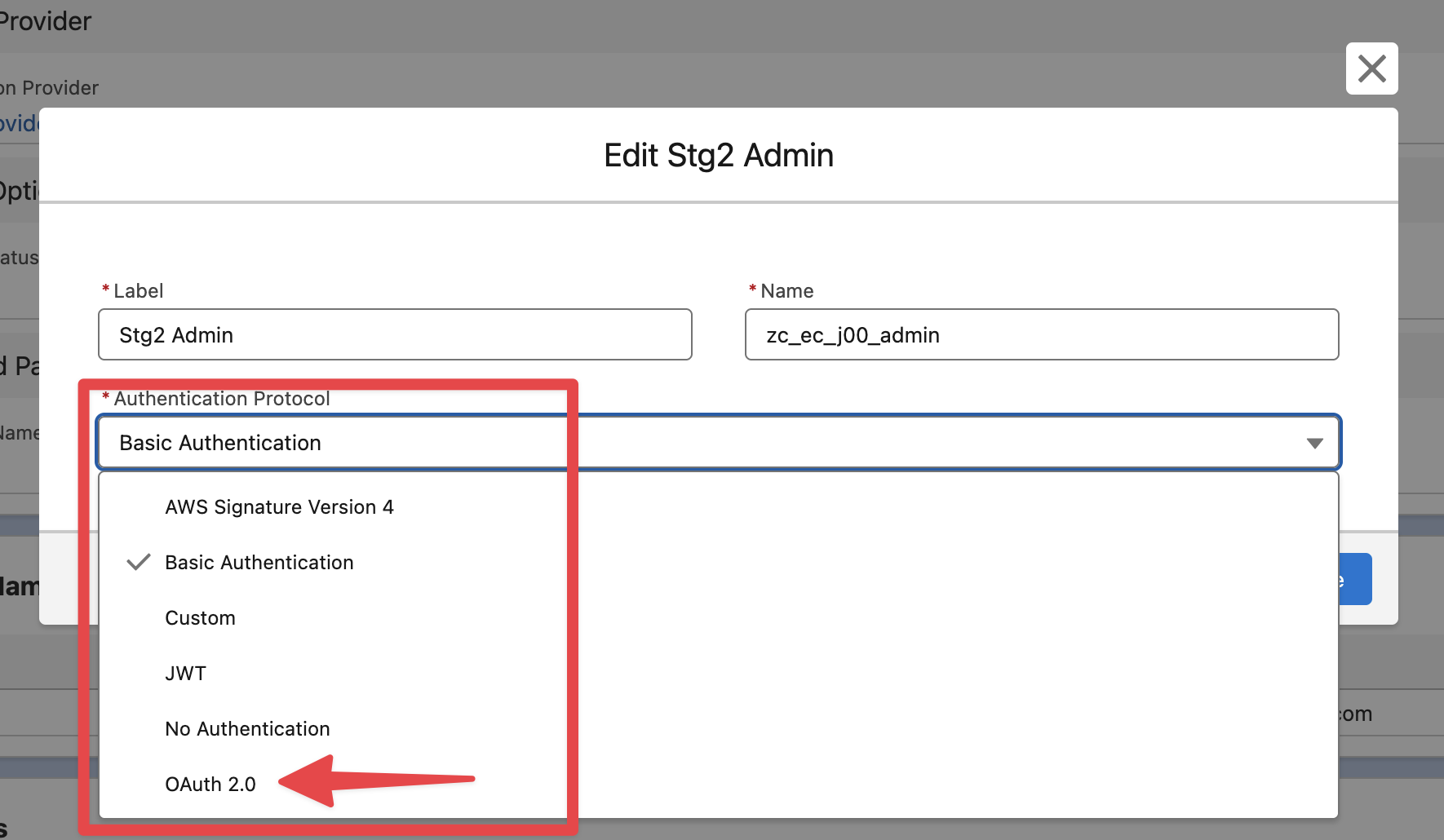

Edit the External Credential and set the Authentication Protocol to OAuth 2.0

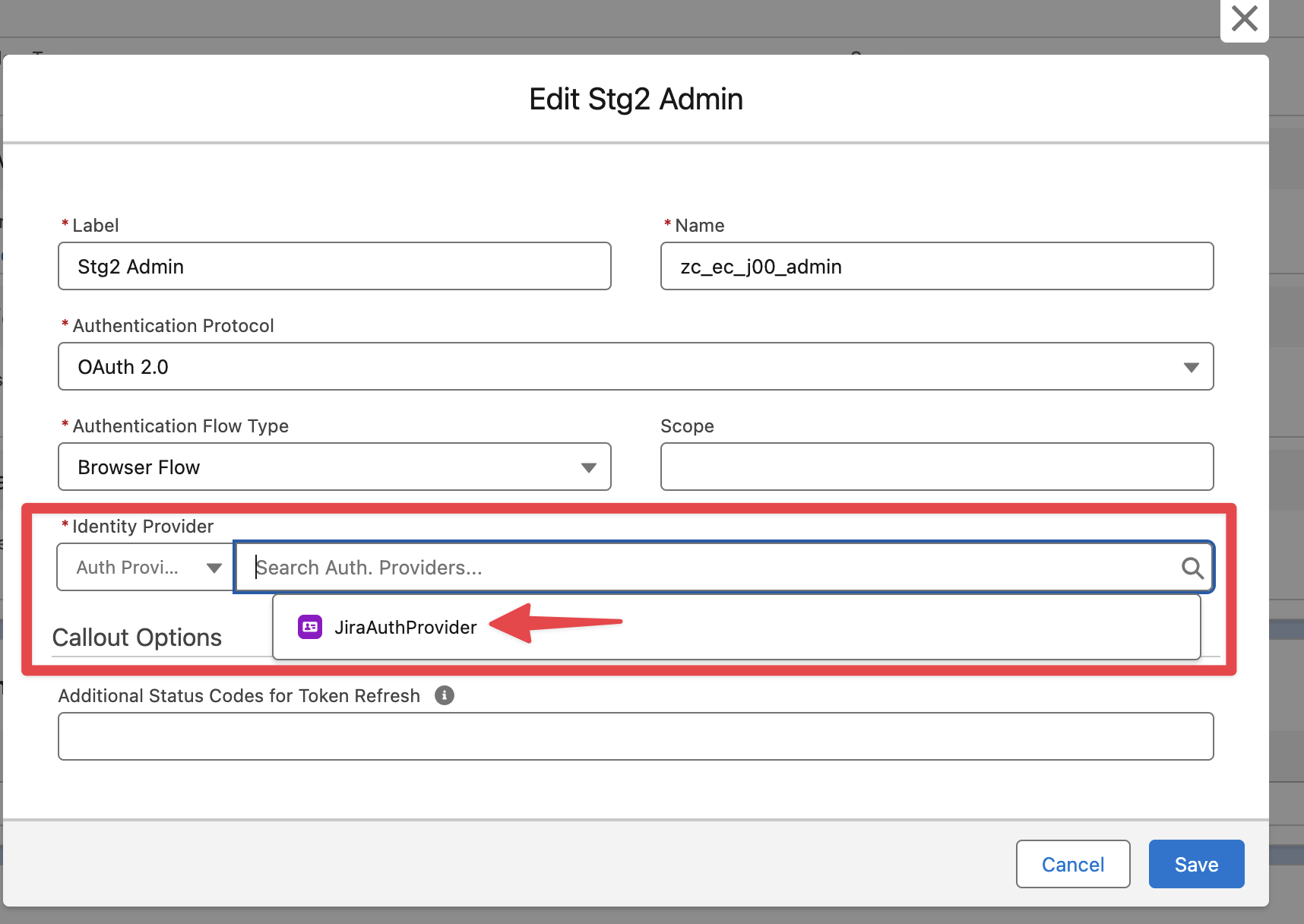

Set the Identity Provider to the Auth. Provider created earlier and Save
